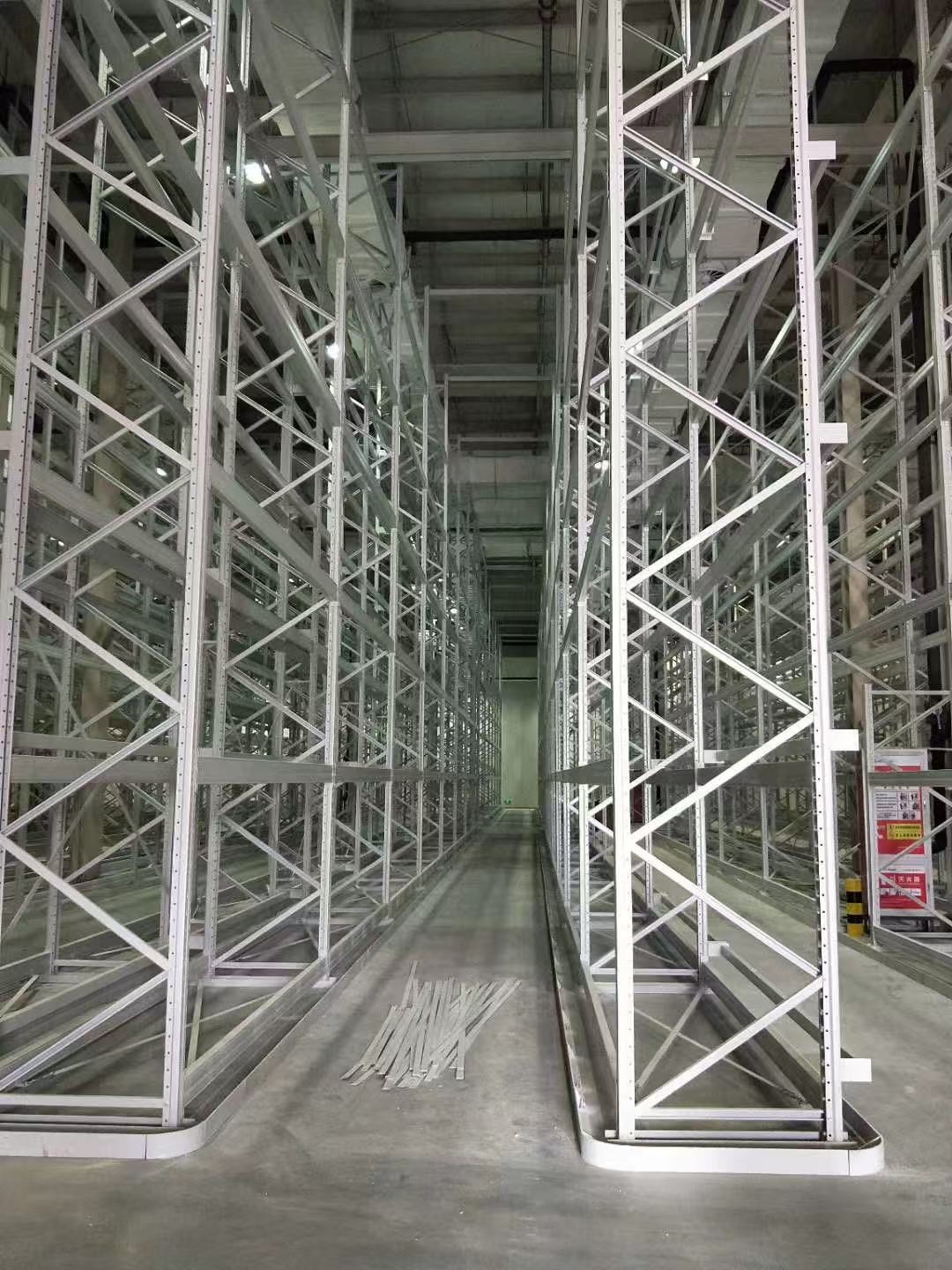

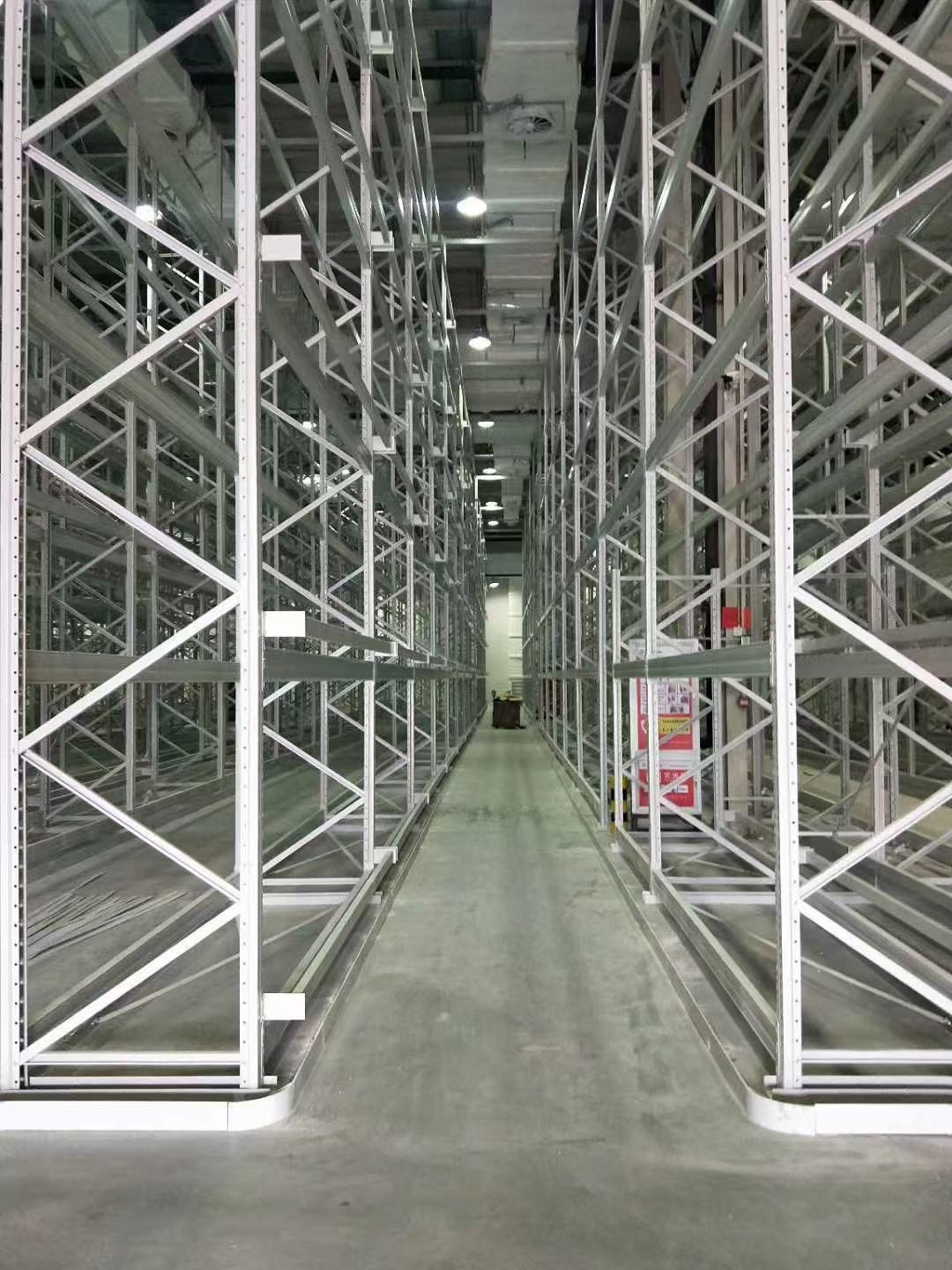

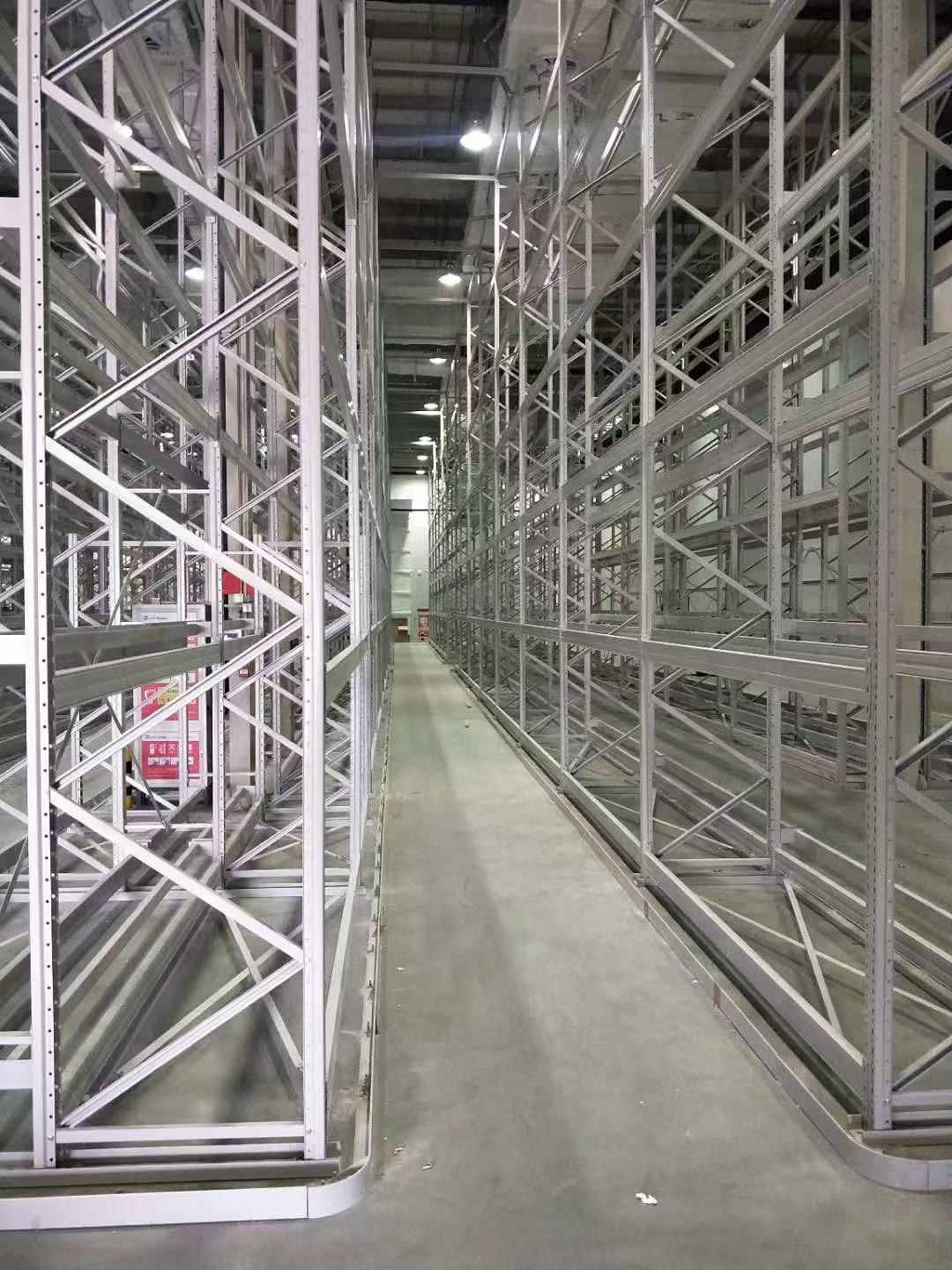

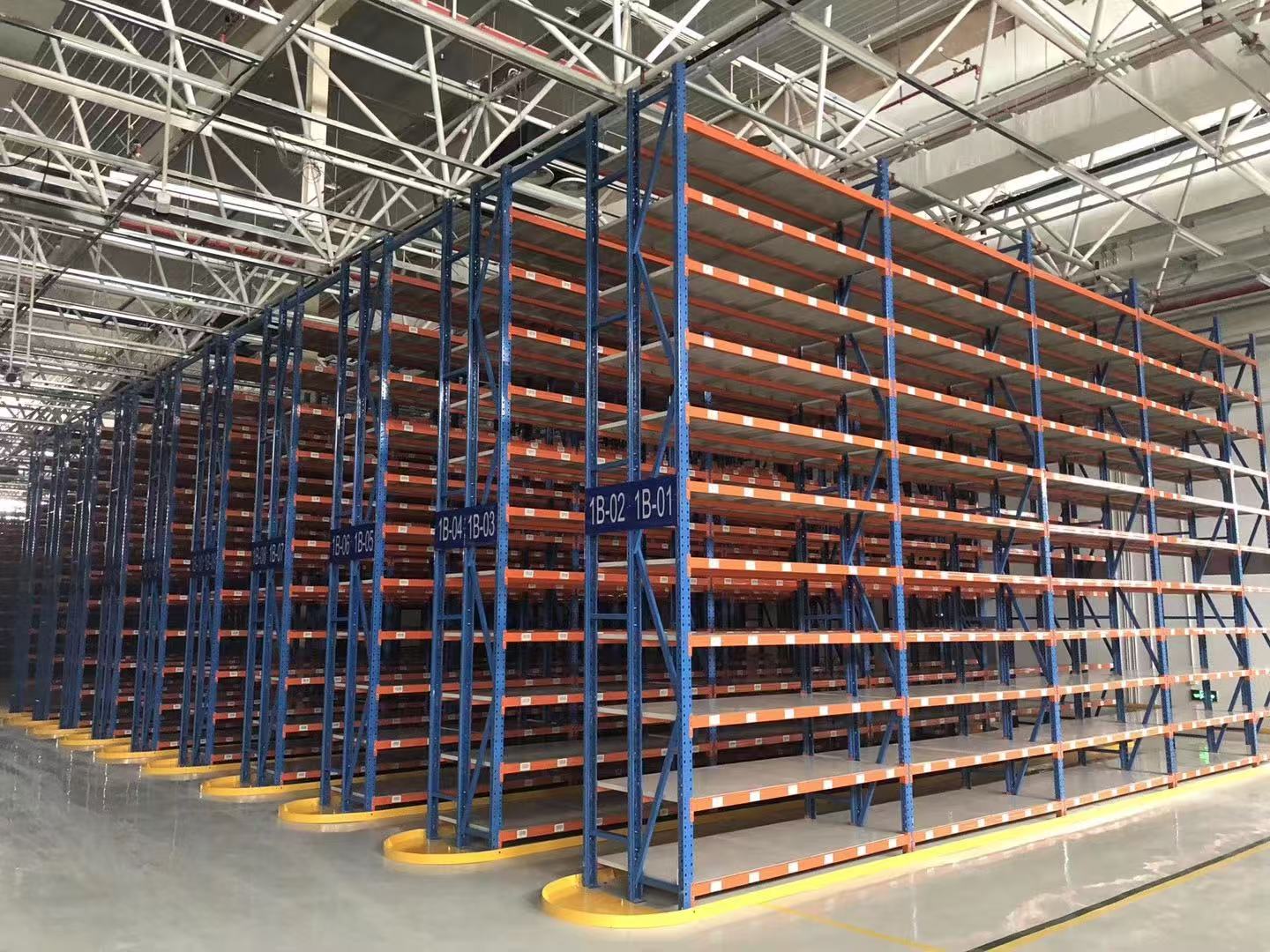

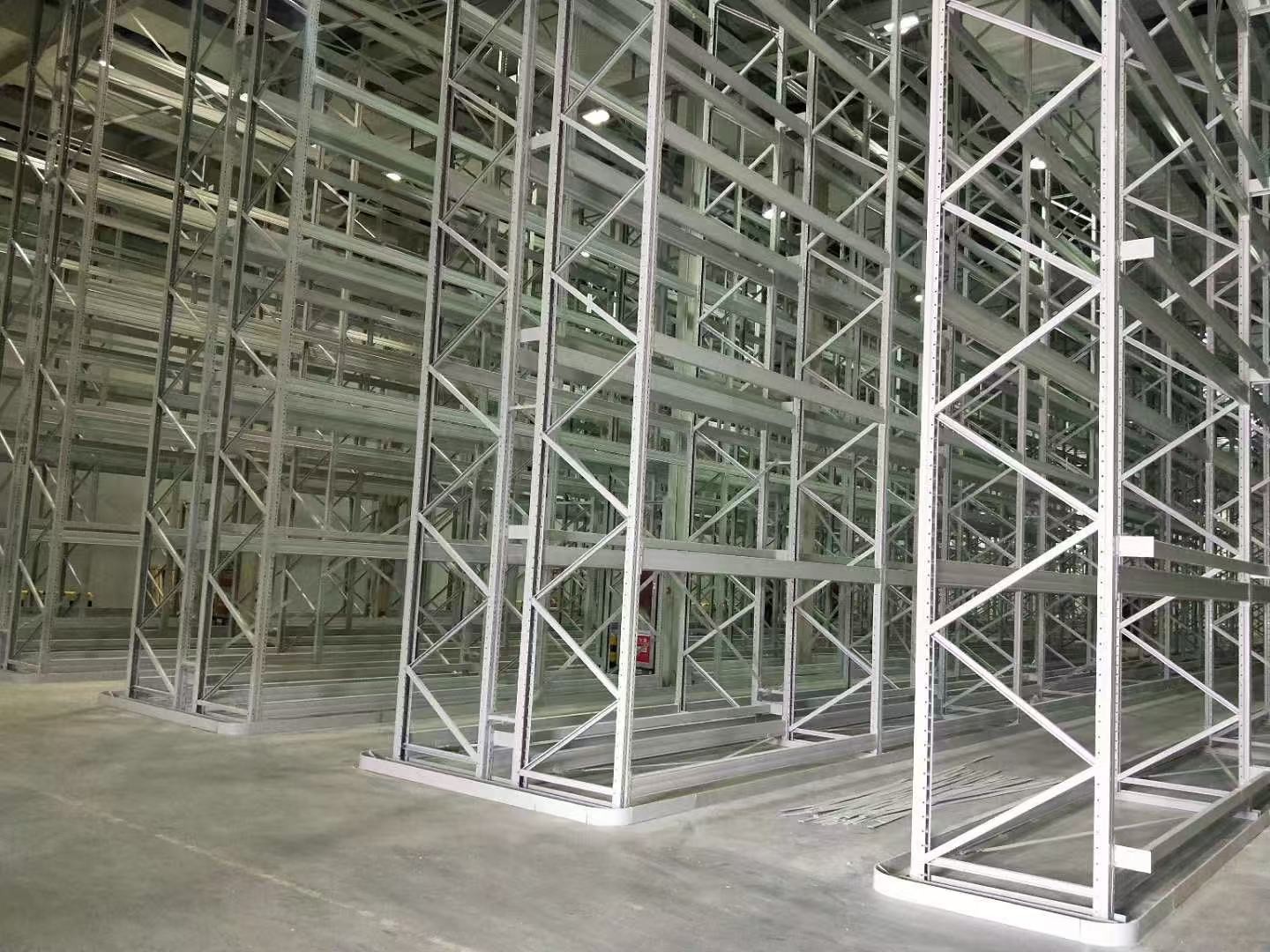

VAN (very narrow aisle)Pallet Racking
lt is one kind of pallet racking , only some sections are different from normal palletracking .For example, for the width of aisle , special forklift is needed .The loading capacityis limited by the special forklift , normally not exceed 1500kgs/pallet.The width of this rackingis normally between 1.4m-1.8m, but height can be up to ten meter .
Some elements needed for design
1. Pallet size and forklift entrance direction.
2. Pallet loading weight and the number of layers.
3. The forklift style and warehouse height.
4. Proper material should be used for post and beam.
5. Direction of aisle.

CHINA THT RACKING Very Narrow Aisle Racking VNA Pallet Racking System

VAN (very narrow aisle)Pallet Racking

lt is one kind of pallet racking , only some sections are different from normal palletracking .For example, for the width of aisle , special forklift is needed .The loading capacityis limited by the special forklift , normally not exceed 1500kgs/pallet.The width of this rackingis normally between 1.4m-1.8m, but height can be up to ten meter .

Some elements needed for design

1. Pallet size and forklift entrance direction.

2. Pallet loading weight and the number of layers.

3. The forklift style and warehouse height.

4. Proper material should be used for post and beam.

5. Direction of aisle.
